Basic NGS Data Analysis

🎯 Module Introduction:

In this module, you will be introduced to the fundamental principles of analyzing Next-Generation Sequencing (NGS) data. The course begins with an overview of various NGS technologies and the types of data they generate. Following this, you will learn how to identify Single Nucleotide Polymorphisms (SNPs) within resequencing datasets. The module also covers essential quality control measures, techniques for filtering erroneous data, and basic statistical analyses to interpret the biological significance of the identified SNPs.

Section 1: Variant Calling

🏁 Learning Objectives:

1. To develop proficiency in utilizing the Genome Analysis Toolkit (GATK) workflow for variant calling
2. To understand the process of preparing raw data to meet the specifications of the GATK workflow
3. Apply knowledge gained from GATK variant calling workflow to effectively identify and characterize genetic variants, including single nucleotide polymorphisms (SNPs) and small insertions/deletions (indels)

Variant Calling

• Definition
• Variant calling is the process of identifying genetic variations (such as SNPs and indels) in a sample by comparing it against a reference genome.


• Purpose
• To detect differences between sequenced data and the reference genome, which may indicate important genetic variations related to traits, diseases, or evolutionary processes.


• Applications
• Understanding genetic diversity
• Identifying genes associated with traits
• Improving rice breeding

Tools:

1. Burrows-Wheeler Aligner (BWA)
   A software package for mapping low-divergent sequences against a large reference genome
2. Genome Analysis Toolkit (GATK)
   Offers a wide variety of tools with primary focus on variant discovery and genotyping
3. FastP
   A tool designed to provide fast all-in-one preprocessing for FastQ files
4. FastQC
   A quality control tool for high throughput sequence data
5. Picard
   A set of command line tools for manipulating high-throughput sequencing data
6. SAMtools
   Tool that provides various utilities for manipulating alignments in the SAM and BAM formats

Input Files:

1. Raw reads
   • Format: FASTQ (.fq, .fastq, .fastq.gz)

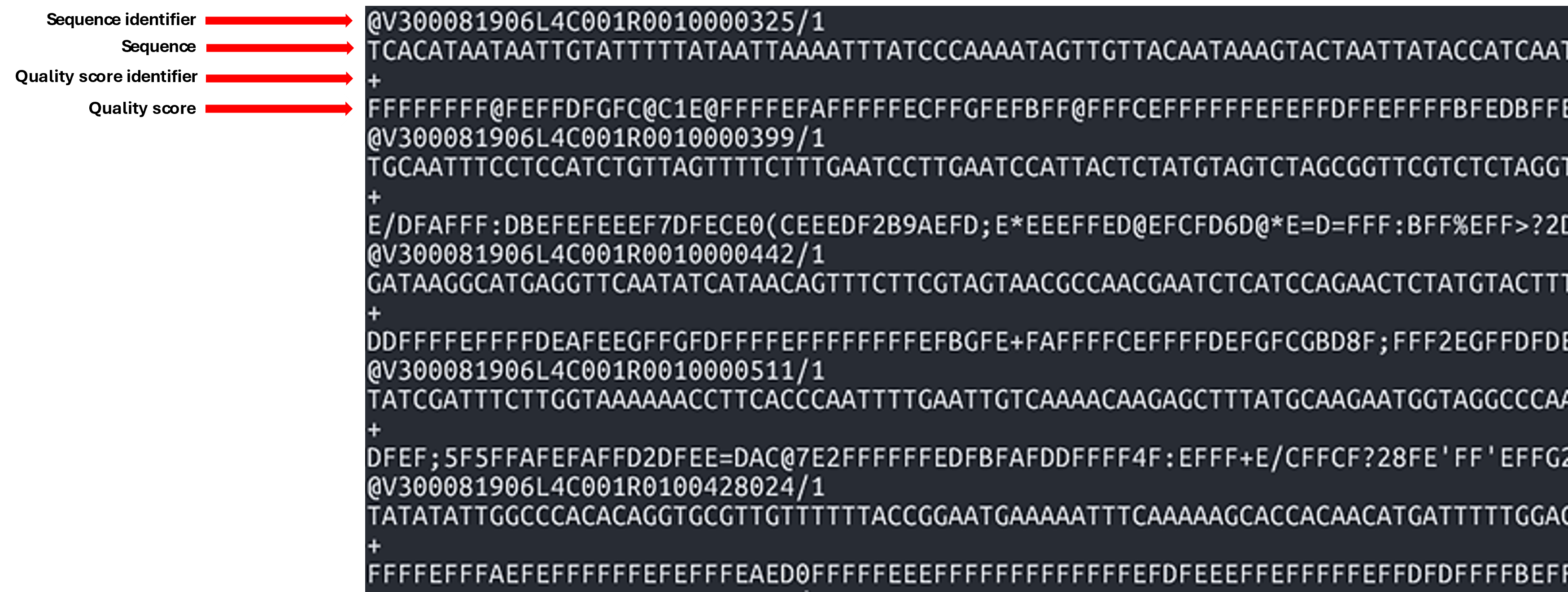

   • FASTQ: Used to store both the nucleotide sequence data and quality scores
   • 1st line: Sequence identifier
   • 2nd line: Sequence
   • 3rd line: Quality score identifier
   • 4th line: Base quality scores

2. Reference
   1. Format:FASTA (.fasta, .fa, .fsa)
   2. FASTA: A text-based format for representing collections of nucleotide or protein sequences. The file consists of several blocks, each containing a header line and sequence lines. Typically, each block contains a sequence of a whole chromosome or a contig.

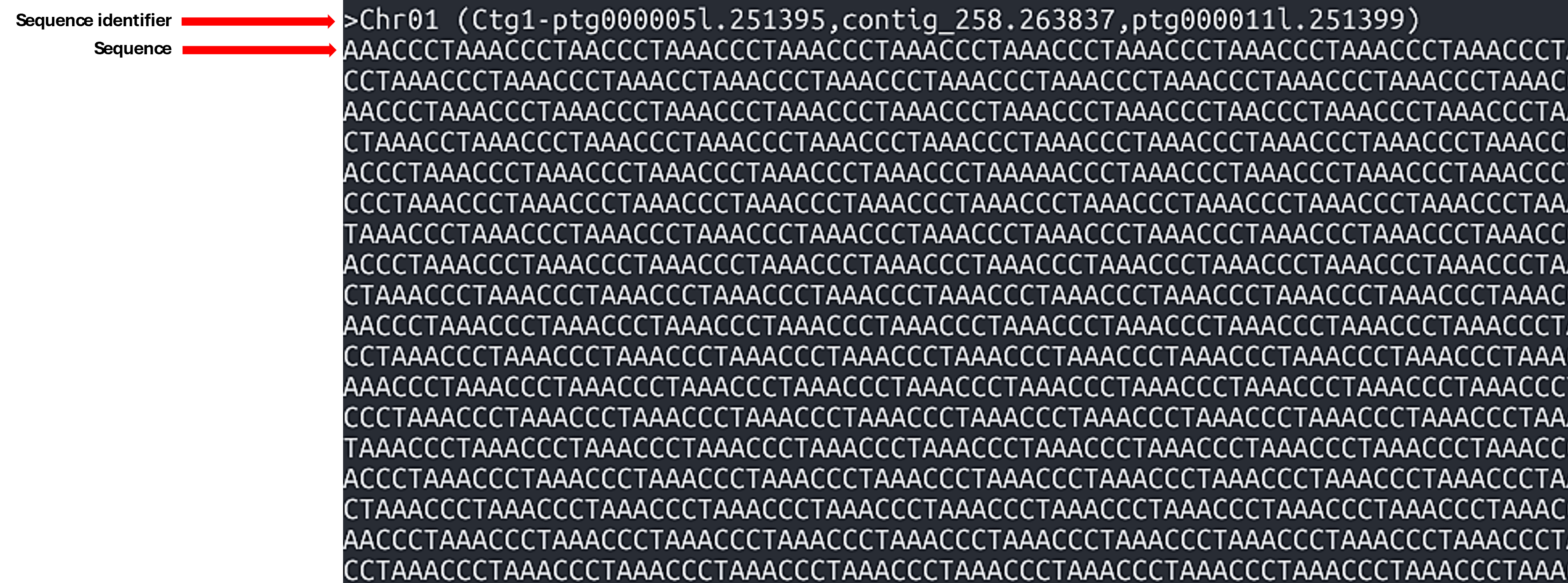

   • Line 1: A header line starting with a > character, which contains information about the sequence.
   • Line 2: Sequence (can occupy several lines)


Intermediate Files:

1. Sequence Alignment/Map Format (SAM)
   • a. Format for storing large nucleotide sequence alignments
   • b. A .sam file consists of two sections:
     • Header (lines starting with @): Contains metadata about the reference genome and alignment process.
     • Alignment section: Contains one line per read, describing its alignment to the reference.

     Example .sam content:

     @HD	VN:1.6	SO:coordinate
     @SQ	SN:chr1	LN:248956422
     @PG	ID:bwa	PN:bwa	VN:0.7.17-r1188
     read123	0	chr1	1000	60	100M	*	0	0	ACGTACGT...	TGCAACGT...
     read456	16	chr1	1050	60	100M	*	0	0	TGCAGTCA...	ACGTTGCA...


     Explanation of fields in alignment lines (tab-delimited):

     1. QNAME: Query name (e.g., read ID)
     2. FLAG: Bitwise flag describing the read (e.g., strand, pairing)
     3. RNAME: Reference sequence name (e.g., chr1)
     4. POS: 1-based position where alignment starts
     5. MAPQ: Mapping quality (0–60, higher is better)
     6. CIGAR: CIGAR string describing alignment (e.g., 100M = 100 matched bases)
     7. RNEXT: Next read's reference name (for paired-end)
     8. PNEXT: Position of the next read (paired-end)
     9. TLEN: Template length
     10. SEQ: Read sequence
     11. QUAL: Quality scores (ASCII-encoded)
2. Binary Alignment Map (BAM)
   1. Binary version of the SAM format
   2. To view the file, use:

   samtools view [BAMfile]

   3. Specification document (section 4)
3. BAM Index files
   1. samtools index – indexes SAM/BAM/CRAM files
   2. Syntax:

   samtools index [options] [BAMfile]

Output File:

1. Variant Call Format (VCF)
1. A file format used to store genetic variants, including their genomic position, reference and alternate alleles, quality scores, and sample-specific genotype data . It only lists positions where a variant is present.
2. Specification document



2. Genomic Variant Call Format (gVCF)

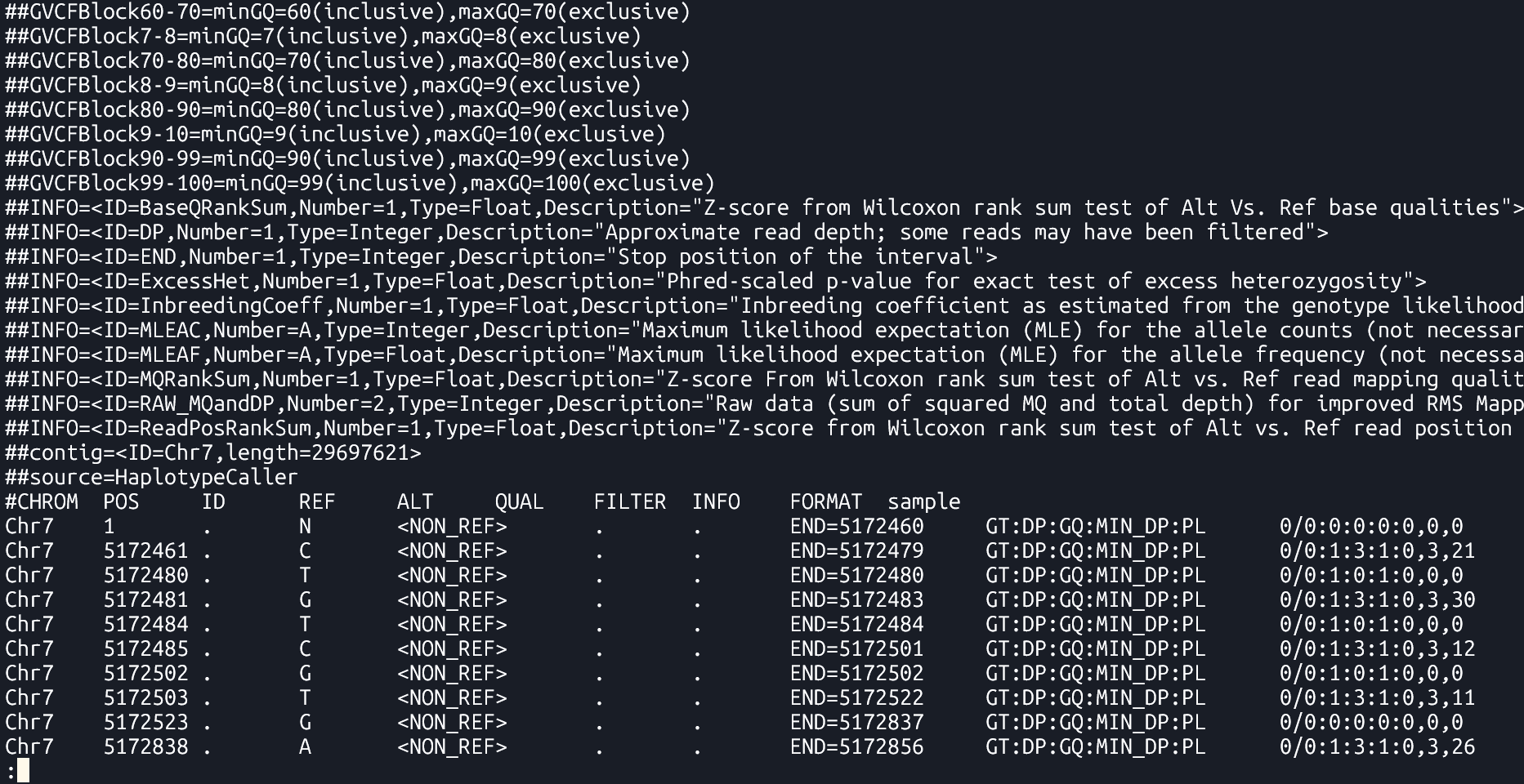

1. A kind of VCF that includes both variant and non-variant regions. It provides information about regions where no variation was found, which helps in later combining data from multiple samples.

Section 2: Variant Calling Pipeline

Description

This is a pipeline for variant calling based on best practices for GATK4

Requirements and Preparation

1. Ubuntu installation on your laptop/workstation
2. Installation of the necessary tools
1. BWA, FastP, FastQC, GATK4, Picard, Samtools
3. Demo dataset
1. Reference:Ref.fasta
2. Data:sample-1_1.fq.gz sample-1_2.fq.gz

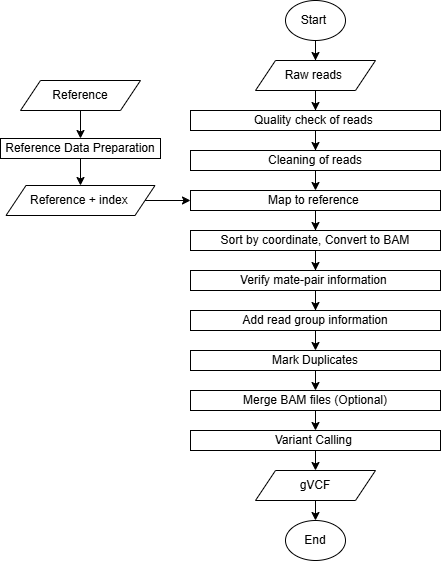

Pipeline

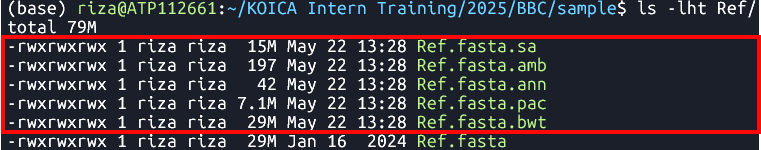

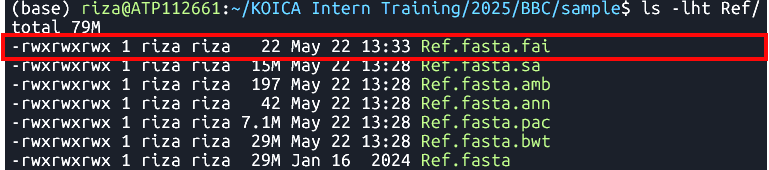

Reference Data Preparation (Indexing)

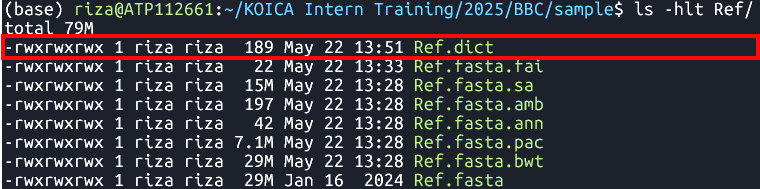

Tools: bwa index, samtools faidx, picard CreateSequenceDictionary

chr1	248956422	52		60	61
 chr2	242193529	253404903	60	61
 chr3	198295559	500657153	60	61

@HD	VN:1.6	SO:coordinate
 @SQ	SN:chr1	LN:248956422	M5:6aef897c3d6ff0c78aff06ac189178dd
 @SQ	SN:chr2	LN:242193529	M5:f98db672eb0993dcfdabafe2a8824adb
 @SQ	SN:chr3	LN:198295559	M5:3e8bb77c8e8e9d1217c335d58efb8c09

Raw Read Preparation

1. Quality Check

   Tool: FastQC Analysis Modules

Purpose

• To ensure that subsequent analyses are based on reliable data.

Syntax

fastqc [in1.fq] [in2.fq] [...inN.fq]

Arguments:

• in1: First input sequence file
• in2: Second input sequence file
• ...inN: Additional input files for batch QC

Command

fastqc Data/sample-1_1.fq.gz Data/sample-1_2.fq.gz

Output

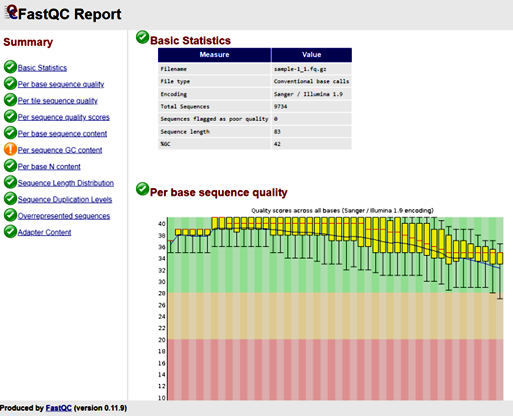

• FastQC Report - identify potential issues such as adapter contamination, overrepresented sequences, and base quality distribution.



2. Cleaning

   Tool:FastP

   Functionality

   • A fast all-in-one preprocessing tool for removing adapters, filtering, and trimming raw sequencing data

   Syntax

   fastp -i [in1.fq] -I [in2.fq] -o [out1.fq] -O [out2.fq]

   Arguments:

   • -i: Input file for Read 1
   • -I: Input file for Read 2
   • -o: Output cleaned Read 1
   • -O: Output cleaned Read 2

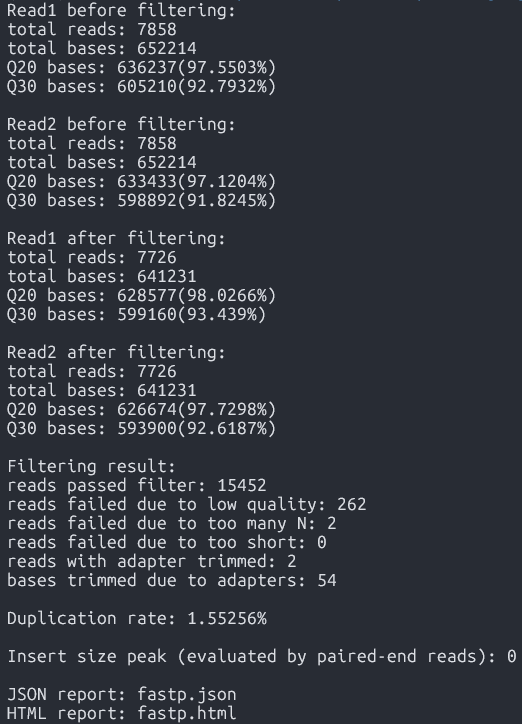

   Command

   fastp -i Data/sample-1_1.fq.gz -I Data/sample-1_2.fq.gz -o Data/sample-1_1-cleaned.fq.gz -O Data/sample-1_2-cleaned.fq.gz

   Output

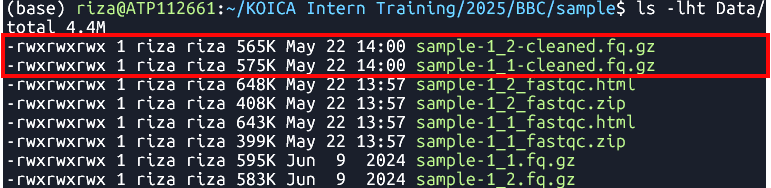

   • Cleaned reads ready for alignment(*-cleaned.fq.gz)



Alignment to Reference Genome

Tool:bwa mem

Purpose

• Maps sequencing reads to a reference genome to identify variation locations, enabling accurate variant calling.

Syntax

• bwa mem arguments [Reference.fasta] [in1.fq] [in2.fq] > [aln.sam]

  Arguments:

  • -t INT: number of threads (e.g., -t 8)
  Command

  bwa mem -t 8 Ref/Ref.fasta Data/sample-1_1-cleaned.fq.gz Data/sample-1_2-cleaned.fq.gz > Output/sample.sam

Output
• Sequence alignment data / alignment output (SAM format)

Sorting

Tool:SortSam

Purpose
1. To organize reads by their genomic position for efficient variant calling.
2. To reduce file size and enable faster processing of files.
Syntax

java -jar $GATK SortSam --INPUT [aln.sam] --OUTPUT [sorted.bam] -SORT_ORDER [coordinate]

Arguments:

• --INPUT, -I: Input BAM or SAM file to sort. Required
• --OUTPUT, -O: Sorted BAM or SAM output file. Required
• --SORT_ORDER, -SO: Sort order of the output file.
• coordinate: Sorts primarily according to the SEQ and POS fields of the record.

Command

java -jar $GATK SortSam --INPUT Output/sample.sam --OUTPUT Output/sample.sorted.bam -SORT_ORDER coordinate

Output
• Sorted aligned reads (.sorted.bam)

Fix mate information

Tool:FixMateInformation

Purpose
• To ensure that the paired-end sequencing reads have consistent and correct mate information.
Syntax

java -jar $GATK FixMateInformation --INPUT [sorted.bam] --OUTPUT [fxmt.bam] --CREATE_INDEX [TRUE] --VALIDATION_STRINGENCY [LENIENT]

Arguments:

• --INPUT, -I: The input files to check and fix. Required
• --OUTPUT, -O: The output file to write to. Required
• --CREATE_INDEX: Whether to create an index when writing VCF or coordinate sorted BAM output.
• --VALIDATION_STRINGENCY: Validation stringency for all SAM files read by this program.
  • LENIENT: Emit warnings but keep going if possible.

Command

java -jar $GATK FixMateInformation --INPUT Output/sample.sorted.bam --OUTPUT Output/sample.fxmt.bam --CREATE_INDEX TRUE --VALIDATION_STRINGENCY LENIENT

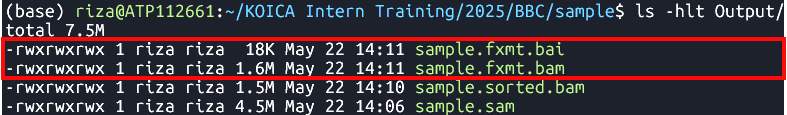

Output

• Mate-fixed aligned reads (.fxmt.bam) and an index (.fxmt.bai).

Add Read Group Information

Tool:AddOrReplaceReadGroups

Purpose
1. To distinguish sequencing data sources and ensure accurate variant calling and analysis.
2. To read more about "read groups", please see this link.
Syntax

java -jar $GATK AddOrReplaceReadGroups --INPUT [fxmt.bam] --OUTPUT [addrep.bam] --RGID [ID] --RGPU [Unit] --RGLB [Library] -PL [Platform] -SM [SampleName] -CN [CenterName] --VALIDATION_STRINGENCY [LENIENT] --CREATE_INDEX [TRUE]

Arguments:

• --INPUT, -I: Input file (BAM or SAM or a GA4GH url). Required
• --OUTPUT, -O: Output file (BAM or SAM). Required
• --RGLB, -LB: Read-Group library. Required
• --RGPL, -PL: Read-Group platform (e.g., ILLUMINA). Required
• --RGPU, -PU: Read-Group platform unit (e.g., run barcode). Required
• --RGSM, -SM: Read-Group sample name. Required
• --RGCN, -CN: Read-Group sequencing center name. Default: null
• --RGID, -ID: Read-Group ID. Default: 1

Command

java -jar $GATK AddOrReplaceReadGroups --INPUT Output/sample.fxmt.bam --OUTPUT Output/sample.addrep.bam --RGID run100 --RGPU unit1 --RGLB lib1 -PL Illumina -SM sample -CN CN --VALIDATION_STRINGENCY LENIENT --CREATE_INDEX TRUE

Output

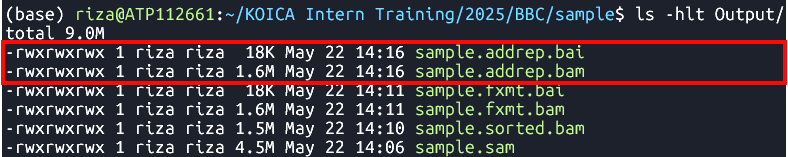

• Aligned reads with updated read group information (.addrep.bam) and an index (.addrep.bai).

Mark Duplicates

Tool:MarkDuplicates

Purpose
• To avoid bias and inaccuracies.
Syntax

java -jar $GATK MarkDuplicates --INPUT [addrep.bam] --OUTPUT [mkdup.bam] --CREATE_INDEX [TRUE] --VALIDATION_STRINGENCY [LENIENT] --METRICS_FILE [mkdup.metrics]

Arguments:

• --INPUT, -I: Input SAM or BAM files to analyze. Must be coordinate sorted. Required
• --OUTPUT, -O: Output file with marked duplicates. Required
• --METRICS_FILE, -M: File to write duplication metrics to. Required

Command

java -jar $GATK MarkDuplicates --INPUT Output/sample.addrep.bam --OUTPUT Output/sample.mkdup.bam --VALIDATION_STRINGENCY LENIENT --CREATE_INDEX TRUE --METRICS_FILE Output/sample.mkdup.metrics

Output

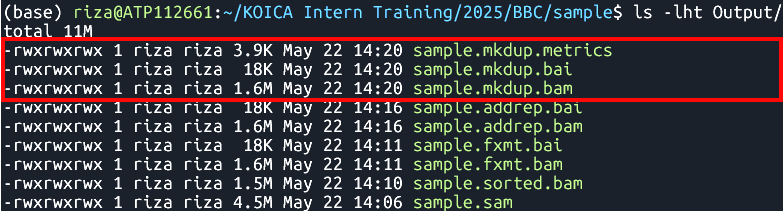

• Duplicate-marked alignment file (.mkdup.bam)
  Index (.mkdup.bai)
  Duplication metrics file (.mkdup.metrics)

Merging BAM files (Optional)

Tool:samtools merge

Variant Calling

Tool:HaplotypeCaller

Functionality
• Call SNPs and indels from aligned sequencing reads.
Syntax

java -jar $GATK HaplotypeCaller -R [Reference.fasta] -I [mkdup.bam] -O [file.g.vcf] -ERC [GVCF] --bam-output [file.bamout.bam]

Arguments:

• --input, -I: BAM/SAM/CRAM file containing reads. Required
• --output, -O: File to which variants should be written. Required
• --reference, -R: Reference sequence file. Required
• --emit-ref-confidence, -ERC: Mode for emitting reference confidence scores.
  Default: NONE | Options: NONE, BP_RESOLUTION, GVCF

Command

java -jar $GATK HaplotypeCaller \ -R Ref/Ref.fasta \ -I Output/sample.mkdup.bam \ -O Output/sample.g.vcf \ -ERC GVCF \ --bam-output Output/sample.bamout.bam

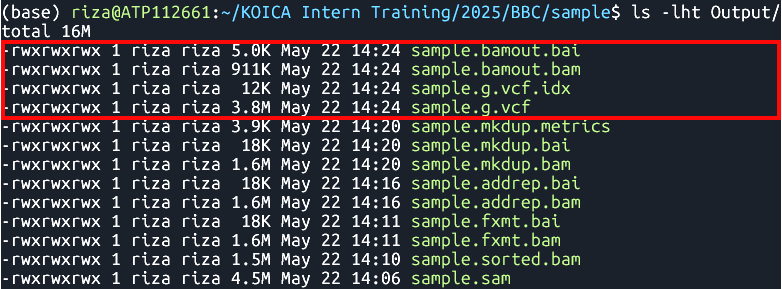

Output
• A set of raw variant calls, including SNPs and indels (.g.vcf)
  GVCF index (.g.vcf.idx)
  BAM file bamout.bam
  BAM file index bamout.bai

Merging GATK GVCFs

Tool:CombineGVCFS

Purpose
1. SNP calling produces multiple gVCF files – each file has variant for one sample.
2. To analyze the data, it is necessary to merge the individual gVCF files.
Syntax
java -jar $GATK CombineGVCFS -R [Reference.fasta] -V [in1.g.vcf] -V [in2.g.vcf] -O [merged.g.vcf]
Arguments:
• --variant, -V: One or more VCF files containing variants. Required
• --output, -O: File to which variants should be written. Required
• --reference, -R: Reference sequence file. Required
Output
• The combined GVCF


Genotyping

Tool:GenotypeGVCFs

Motivation

• Variant callers output both true and false variants
  • Base calling errors, alignment errors, contamination...
• Balance between sensitivity and precision
• The needs of applications may require different preference between precision or sensitivity
• Multi-sample analysis allows to increase the proportion of true positives without sacrificing sensitivity.
• Population genetics principles applicable to your set of samples can further increase the accuracy

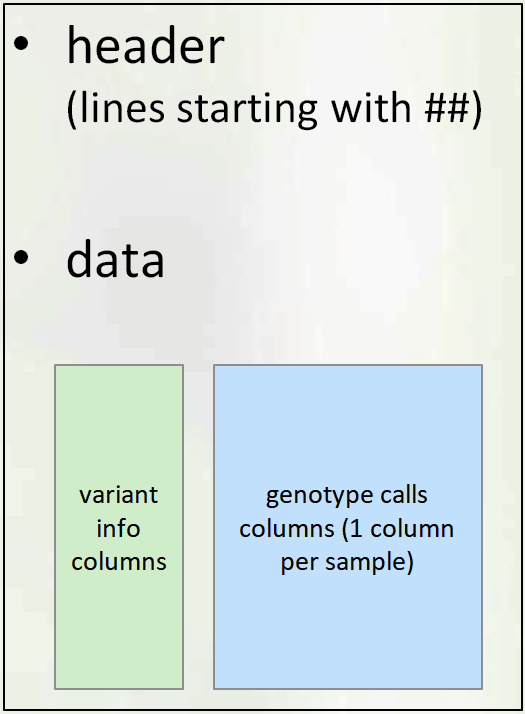

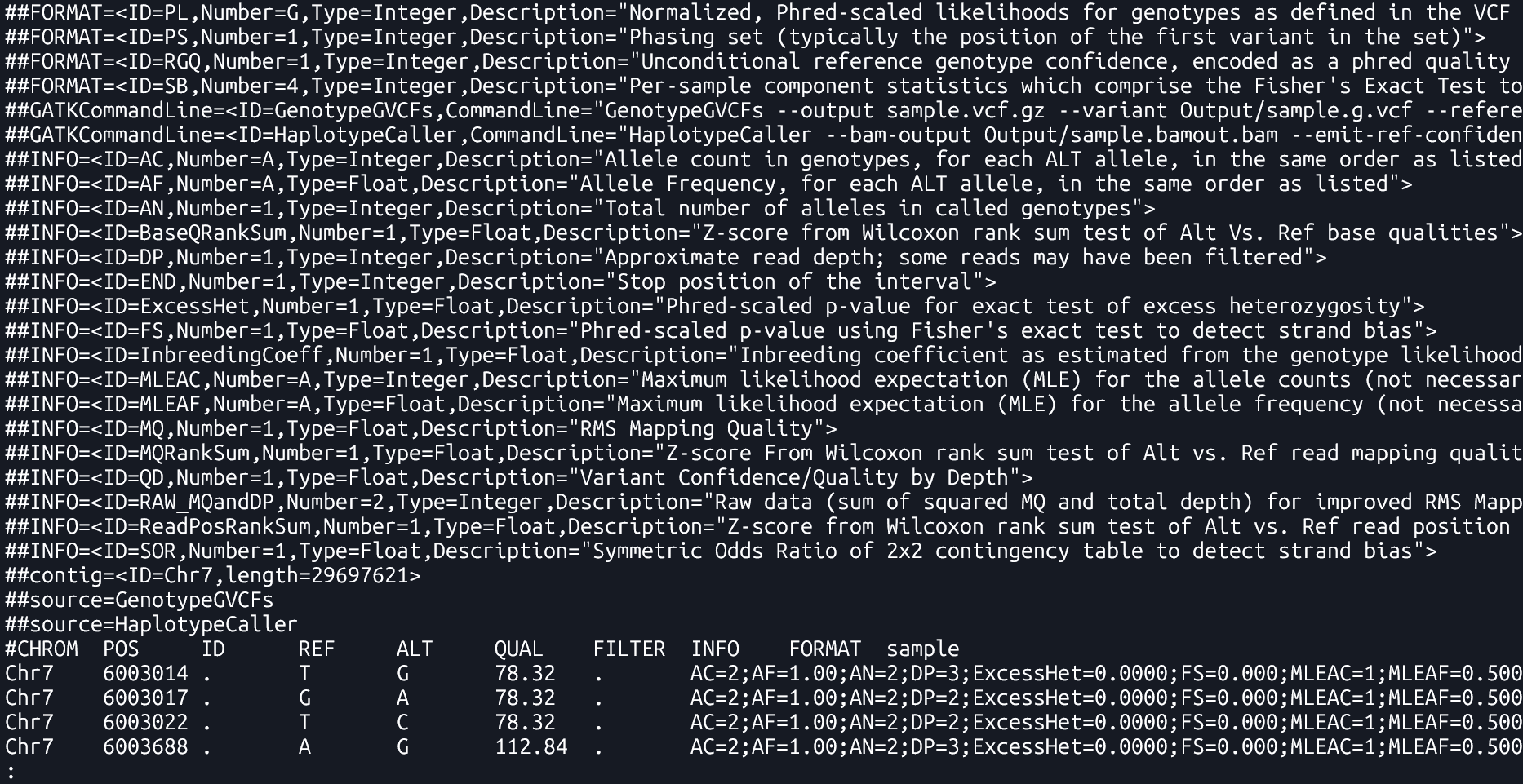

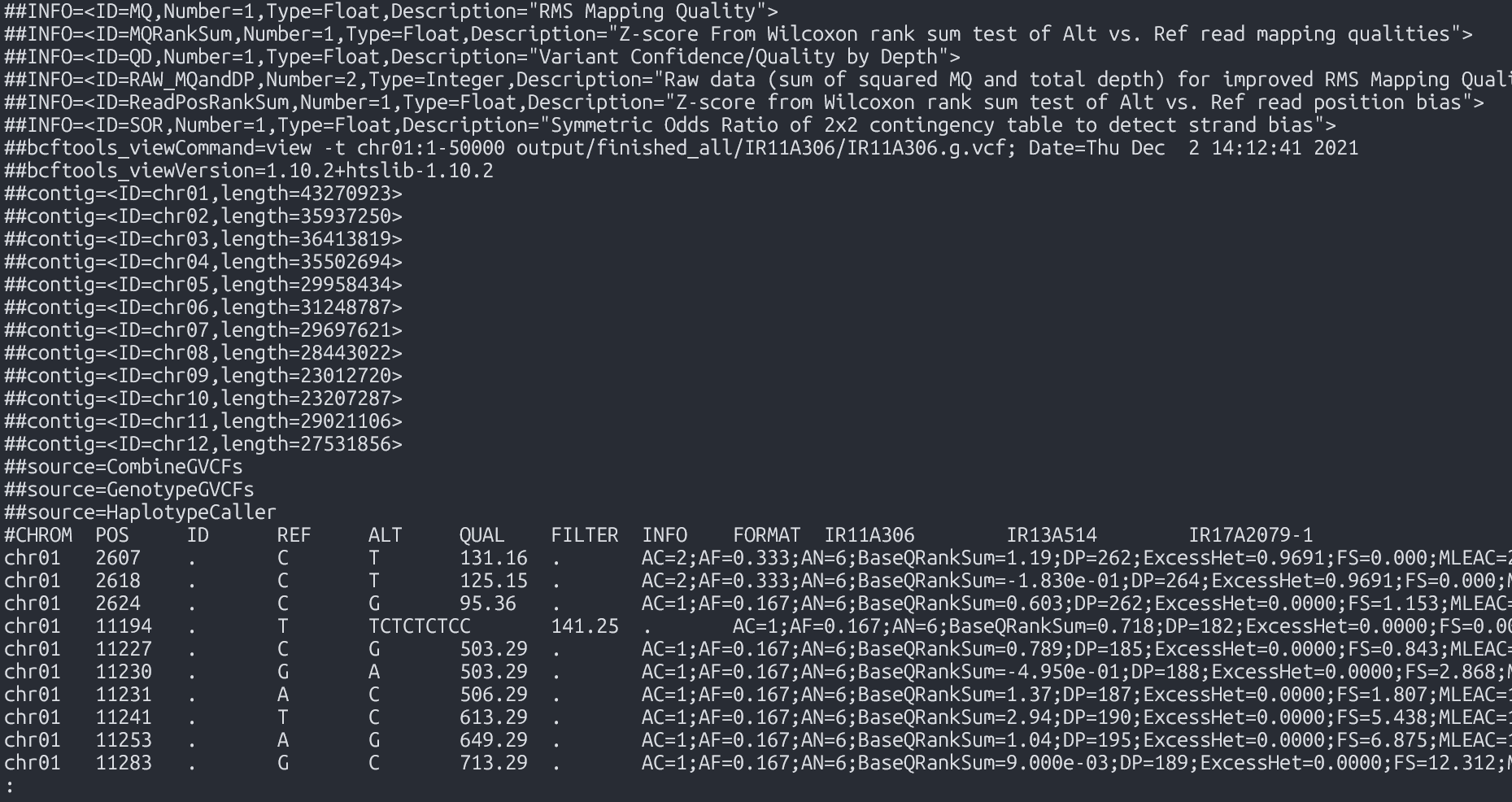

VCF File: Structure

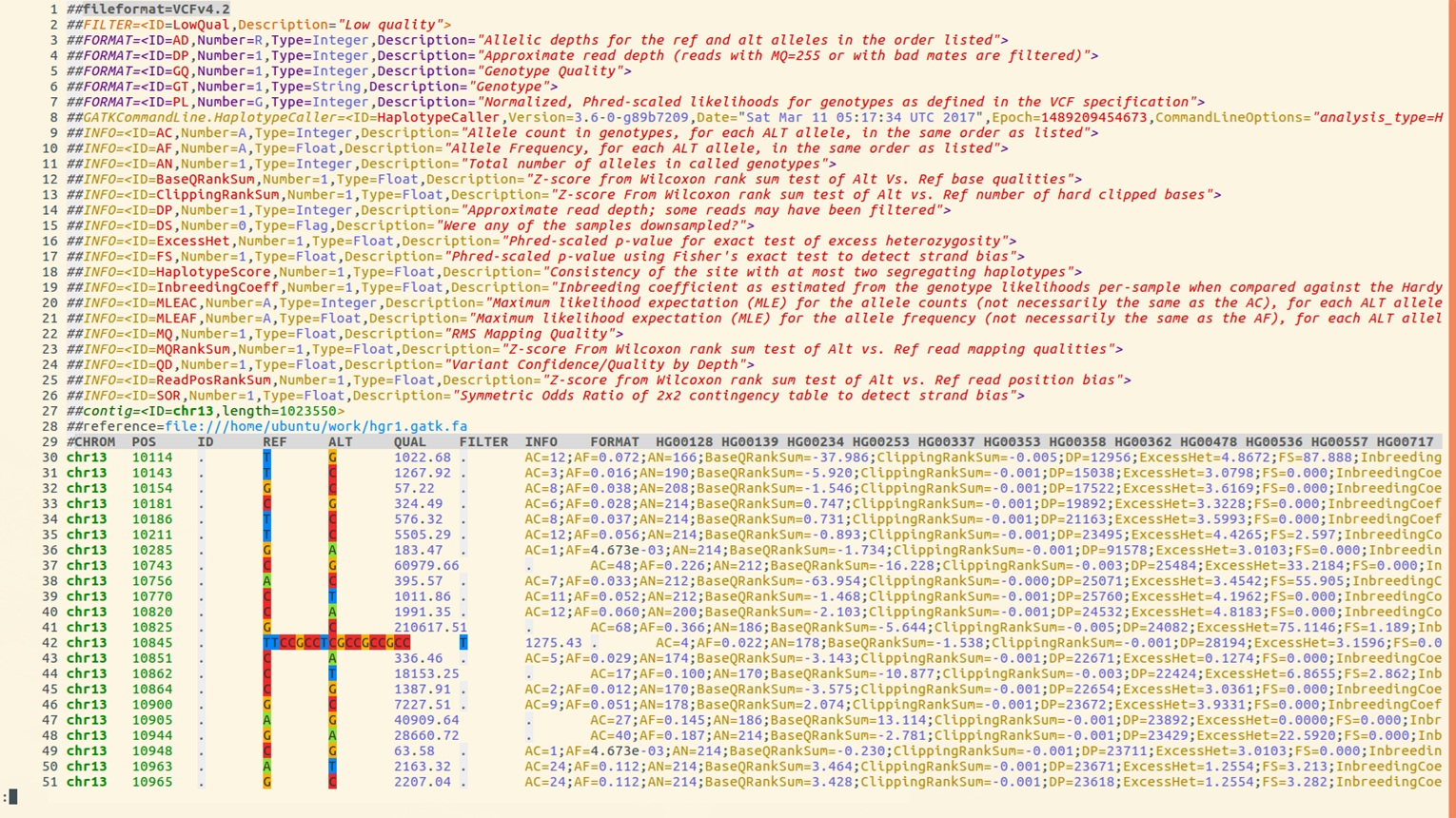

• GATK provides various annotations to help users filter the variants
• We will first recall the details of VCF format and then go over the annotations

• Line 1 shows VCF version
• Line 2 has a single definition of filters (values in the FILTER column). In this example there is only one filter value PASS
• Line 3 to 7 Definition of Genotype information fields
• Line 8the command used to create file
• Line 9 to 26 define INFO annotations. The INFO column is usually where all quality related annotations are located. There are quite a few annotations here, we will only use 2 or 3 of these in this presentation
• Line 27 lists reference genome contigs names and lengths. In this example there is only one contig. In real rice datasets you will have 12 lines, one for each chromosome

VCF File: Section

• Header Section

  The Header contains:

  • VCF Version
  • Commands used to create file
  • Definitions of annotations
  • Names and lengths of contigs/chromosomes
  • Last line: column names for data matrix



• Data Section

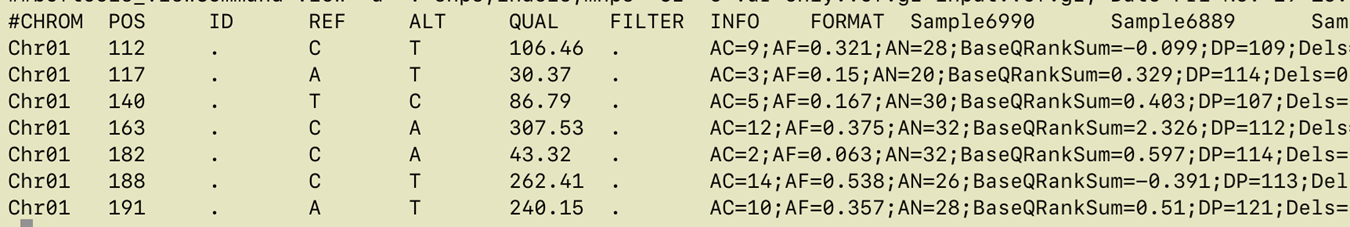

  Each data row contains genotype call data defined by the formatting string located in FORMAT column

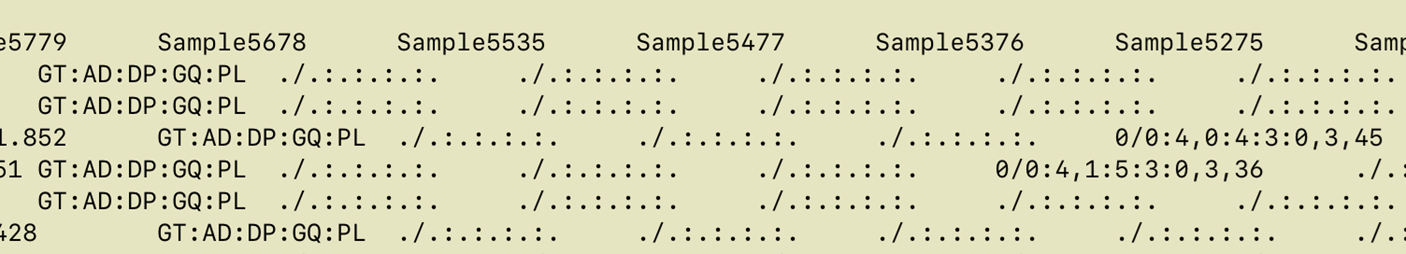

  • Example below: GT:AD:DP:GQ:PL means that each data point consists of 5 values separated by colon(:), namely: : GT: genotype, AD: allele depth… etc.
  GT - Genotype (Numerical encoding)
  • 0 - reference allele, 1- first alt allele, 2-second alt allele, etc
  • 0/1 - unphased , 0|1 - phased heterozygote
  • 1/1 homozygous variant (based on 1st alternate allele)
  • The format can be different for each variant (different rows may have different strings in the FORMAT column), but consistent across samples (i.e. within the row)
  • Example - look at the first non-missing genotype call

  • GT=0/0 (homozygous ref)
    AD=4,0 (4 reads support REF, 0 reads support ALT
    DP=4
GQ=3
PL = 0,3,45(phred-scaled odds , lower is better)

QC Annotations

• Genotype Call Level (for each sample at each variant)
• GQ : genotype quality
• PL : genotype likelihood
• AD : allele depth (number of reads supporting each allele)
• See link for a more detailed explanation of differences between QUAL and GQ


• Variant Level
• QUAL
• FILTER
• INFO : DP, QD, AN, AC, AF

QUAL

QUAL is usually defined as: Phred-scaled probability of having no variant at this position

higher QUAL = lower prob of no variant = higher prob of real variant

Phred scaled means take log10 and multiply by -10:

\(QUAL = (−log P(no variant)) * 10\)

• - In 100,000 variants with QUAL=30, expect 0.001*100,000 = 100 false positives

Read Depth (DP)

• DP within INFO column (INFO/DP) : Read depth of coverage for this position across all samples

• DP within each genotype call - read depth for that genotype only example:



FORMAT          Sample1            Sample2            Sample3
GT:AD:DP      0/0:12,0 :12        0/1:6,4:10       1/1:0,33:33

Quality-by-Depth (QD)

• Quality-by-depth or QUAL-by-depth
• Motivation:
• higher DP leads to higher QUAL
• thus, to assess quality regardless of depth, need to normalise it. Relevant for high coverage data
• QD uses only the reads supporting the ALT allele (so, it’s not simply QUAL/DP)
• For exact definition see GATK documentation
• QD distribution is usually bimodal (smaller QD peak from heterozygous calls, larger QD peak from homozygous alt calls)
• GATK filtering recommendation: QD > 2

MQ and MQ0

• MQ: Mapping quality
• Defined in VCF header as: ##INFO=(ID=MQ,Number=1,Type=Float,Description="RMS Mapping Quality")
• Each read has a mapping quality - confidence that alignment is good
• MQ is an average of mapping quality across all reads supporting the variant
  (actual average measure: Root Mean Square)


• MQ0: number of reads with mapping quality 0
• Many reads with MQ=0 signify a region that is hard to align - perhaps should not trust

Recommended minimum MQ = S40

Allele Frequency Annotations

AN, AC, AF

• AN
• Total number of chromosomes with called allele
• Number of non-missing genotypes times ploidy


• AC
• Number of chromosomes carrying ALT allele in case of several ALT alleles (multiallelic SNP)
• The counts will be separated by comma “,”


• AF
• Allele Frequency
• Proportion of chromosomes carrying ALT allele = AC/AN

• These quantities can also be extracted from simpler formats like HapMap and PLINK
• VCF also has some related quantities with prefix MLE (maximum likelihood estimate): MLEAC, MLEAF. We will not use these.

Filtering on Allele Frequency

• Filtering on allele frequency is perhaps most popular type of filtering. You may see recommendations like
  filter all alleles with frequency < 1% or 5%


• While this is helpful in most cases, there are some considerations to keep in mind

Base Calling Errors

• Sequencing (base calling) errors are very rare events, and thus are mostly found as singleton SNPs (i.e. appear only in a single sample).
• However, base calling errors will typically appear in only one read covering a position, and GATK tries to detect these.. The variant quality (QUAL and GQ) will typically reflect this and filtering based on GATK annotations should deal with most of these.
• On the other hand, based on population genetics we expect an abundance of singleton SNPs in every diverse sample.( Highest number across all frequency bins).
• With data produced by modern NGS* instruments, most singleton SNPs are actually true SNPs.


• Depending on analysis needed, one may wish to retain even rarest SNPs, after filtering based on GATK annotations only (no allele frequency filtering).

Alignment Errors

• Plant genomes are complicated:
• Ubiquitous repeats
• Traces of ancient WGD (whole genome duplication)
• Divergence in terms of structural variants. Sample genome may have large deletions, insertions, translocations, or inversions, compared to the reference genome


• As a result, read mapping is imperfect. Reads originating from one place in the genome may be mapped to another
• This is most common source of false variants. These come from a real biological signal (correctly sequenced read), but are not positioned correctly
• sometimes can hinder genotyping a true variant (one can have both true and false genotype at the same position)
• The same alignment error can be affecting multiple samples, and the resulting false SNPs may have high allele frequency.

Heterozygosity

• For an inbred species, the expected amount of heterozygotes at a given SNP position is less than for randomly mating population, and is given by a (modified) Hardy-Weinberg formula

\(Expected.prop.of.het. = 2p(1-p)(1-F)\)



where:
F is the inbreeding coefficient
p is the allele frequency


• F can be estimated from genome-wide data. GATK in multi-sample genotyping mode also provides estimates of F (InbreedingCoef).

Allele frequency vs heterozygosity in 3K data

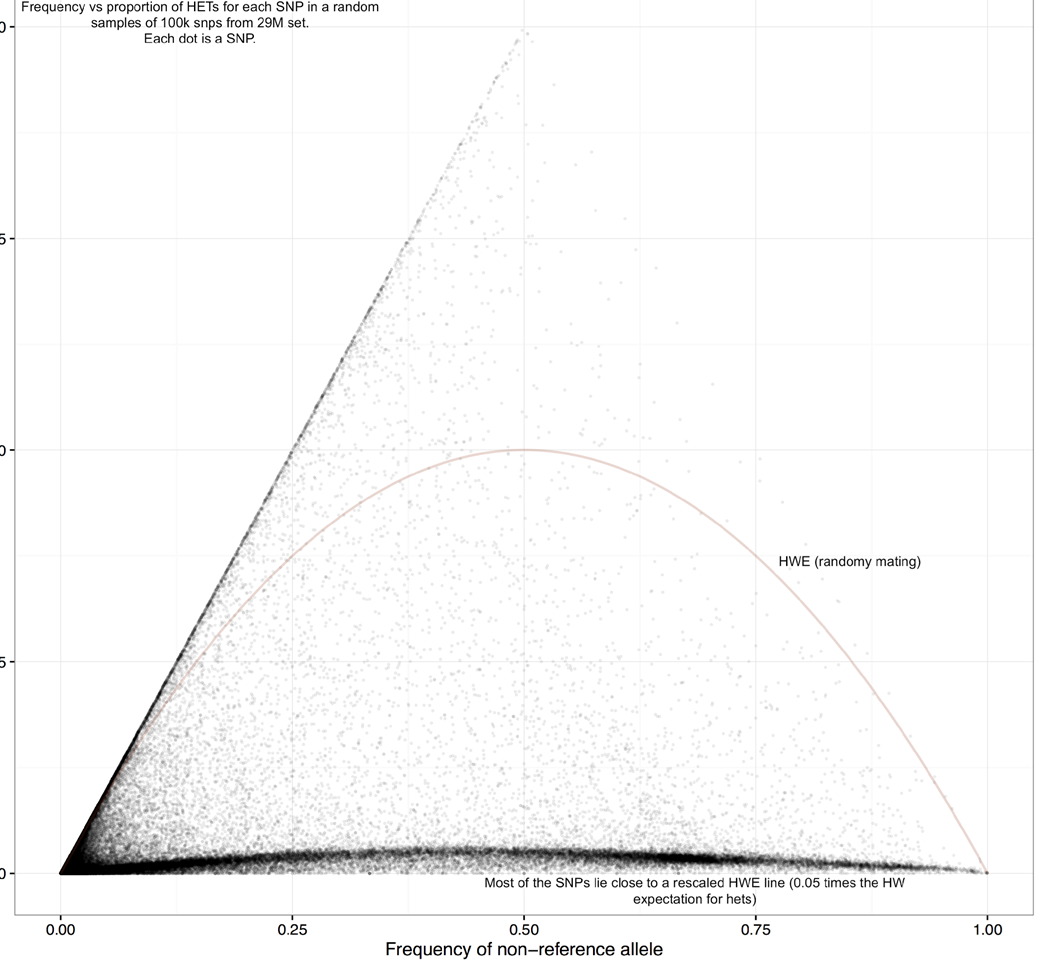

• Observe that the distribution is quite far from random mating expectation (red curve)
• Y axis: proportion of heterozygous calls
  X axis: allele frequency

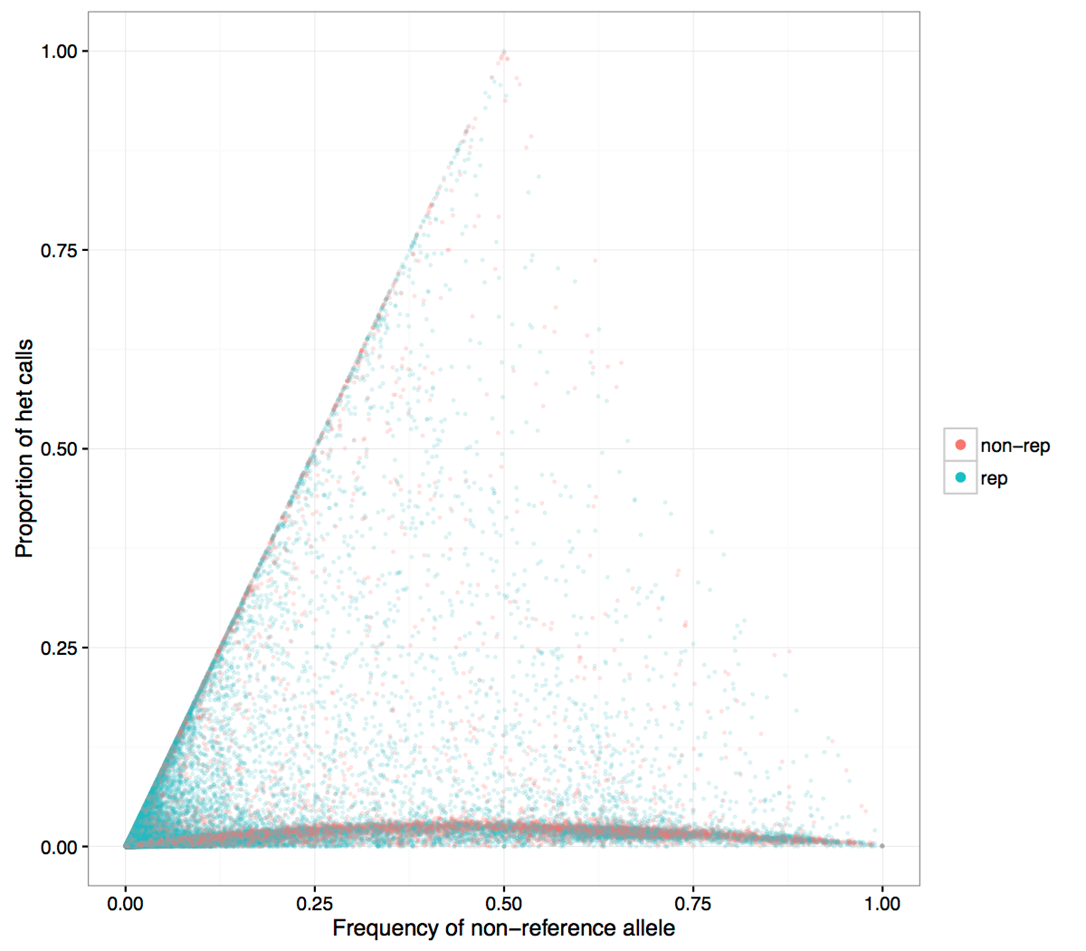

• Same figure with repeat region SNPs colored blue
• Higher heterozygosity SNPs tend to concentrate in repeat regions

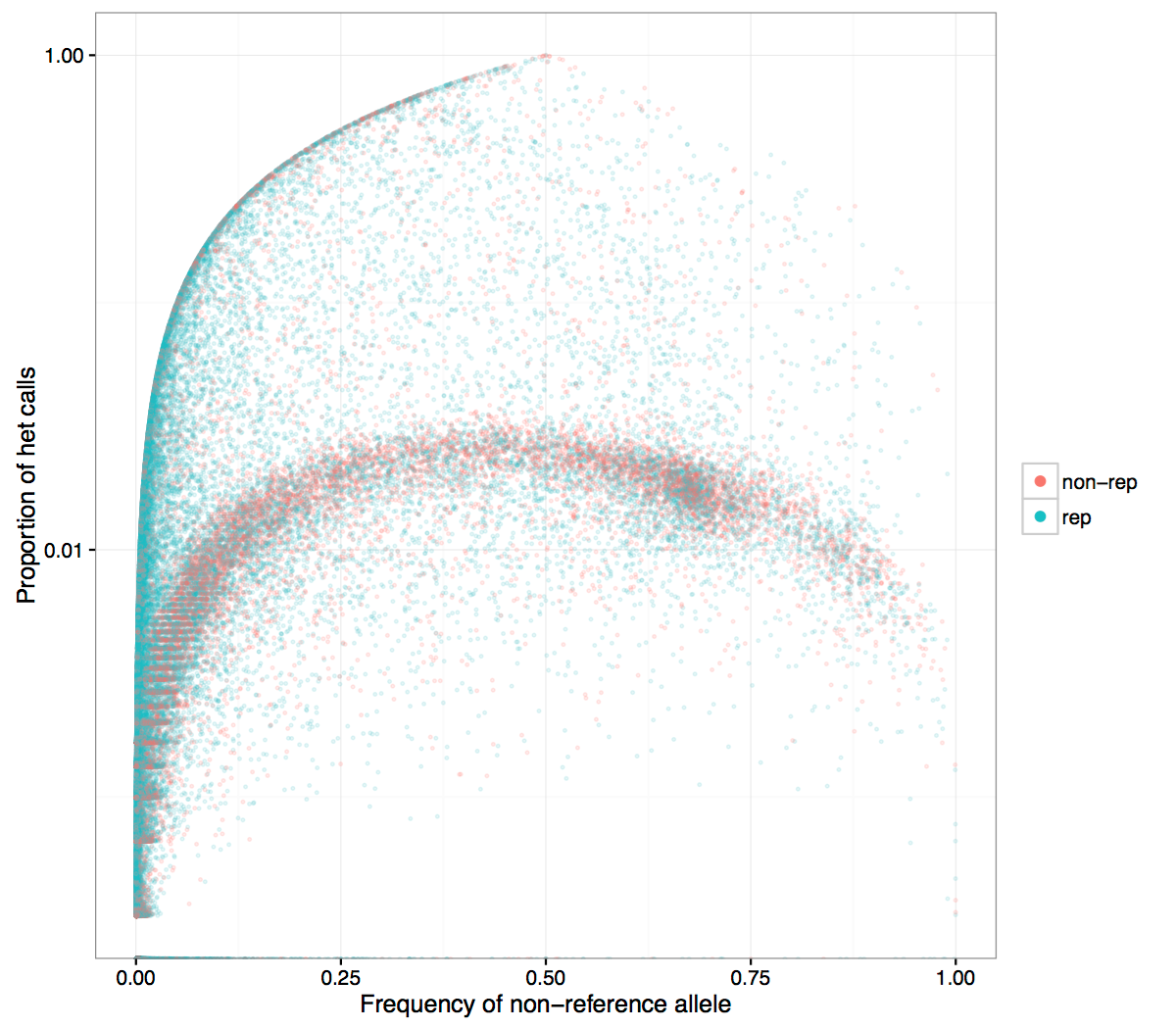

• Same plot with log axis for Y. It is seen more clearly that SNPs in non-repetitive regions are at the small heterozygosity proportion

SNP heterozygosity along genome

• Shown is the beginning of Chr9

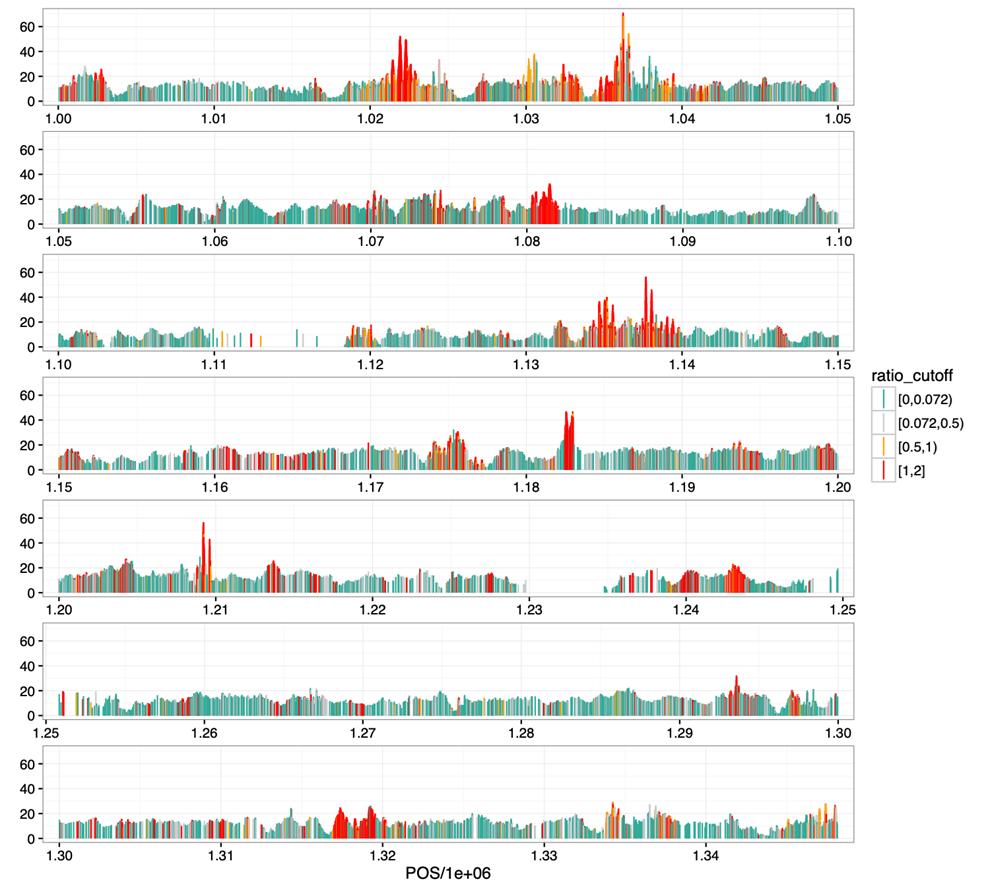

• Highly heterozygous SNPs are clustered (red curve), consistent with their potential origin in duplications
• They are quite ubiquitous, can explain a large proportion of raw SNPs that are filtered

Filtering: based on heterozygosity

• Initial filtering using QD annotation deals with many alignment errors
• If InbreedingCoef is available, it may be used, otherwise we can estimate it

Filtering: based on Hardy-Weinberg

• Question: "Some tools (e.g. PLINK) have a built-in filtering based on testing Hardy-Weinberg expectation. Can we use that filtering when we analyse rice data"?
• Short Answer: No
• The built-in HWE test does not account for inbreeding, thus it is inappropriate for rice.

Why the standard Hardy-Weinberg can be inappropriate

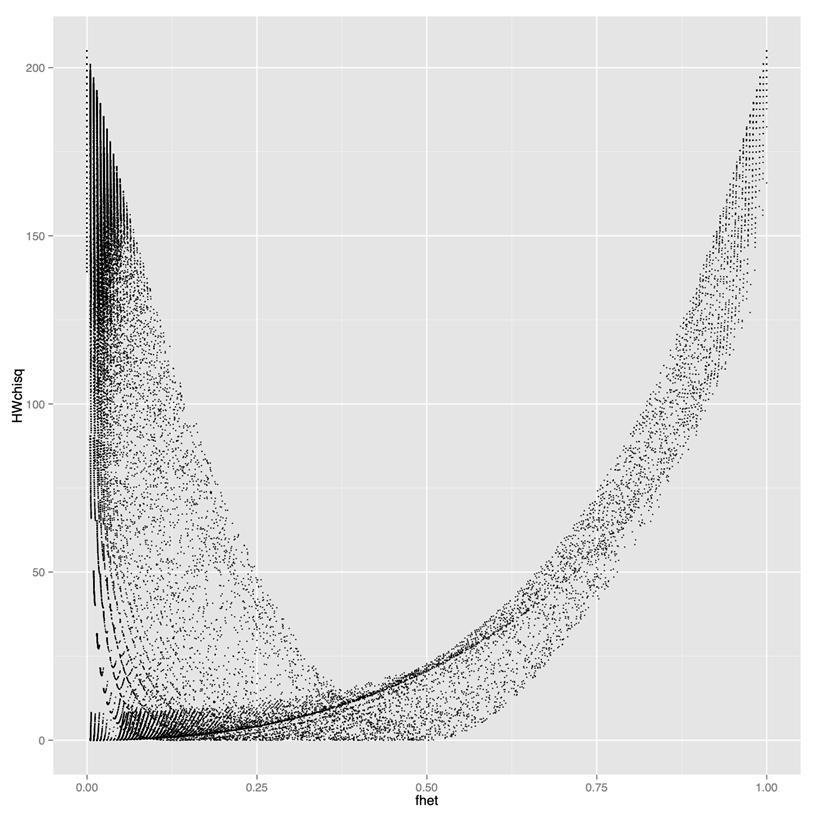

• Y axis: test statistics (high values result in filtering out)
  X axis: proportion of het calls
• If you use standard HW filtering, you lose a lot of good SNPs. Need to use modified HW filtering

Modified Hardy-Weinberg

• Expected proportion of heterozygous calls under standard HW:

\(Hexp = 2p(1-p)\)



• When there is inbreeding, the expected proportion of hets is given by the following formula

\(Hexp = 2p(1-p)(1-F)\)



F = inbreeding coefficient
F > 0.95 for rice

Take-away

• Variant callers output both true and false variants due to various errors (base calling errors, alignment errors, contamination) and filtering helps to overcome those errors.
• Different analyses may require different filtering procedures. Allele frequency filtering is good for some analyses (GWAS), but could potentially lead to bias in other analysis (divergence)
• Using population genetics principles can help design filtering that fits your data
• For inbred species, filtering based on heterozygosity/inbreeding coefficient is appropriate (and built-in tools based on HW filtering for human data are not appropriate)

Variant Calling Pipeline

Description

This is a pipeline for variant calling based on best practices for GATK4

Requirements and Preparation

1. Ubuntu installation on your laptop/workstation
2. Installation of the necessary tools
1. BWA, FastP, FastQC, GATK4, Picard, Samtools
3. Demo dataset
1. Reference:Ref.fasta
2. Data:sample-1_1.fq.gz sample-1_2.fq.gz

Pipeline

Data Preparation and Import

1. Unpack the sample dataset archive.
Command

• tar -xzvf sample.tar.gz

  Copy

• Extracts the sample.tar.gz archive

Output
•
• sample ├── Data │   ├── sample-1_1.fq.gz │   └── sample-1_2.fq.gz └── Ref └── Ref.fasta 3 directories, 3 files


2. Create Output directory.
Command

• cd sample

  Copy

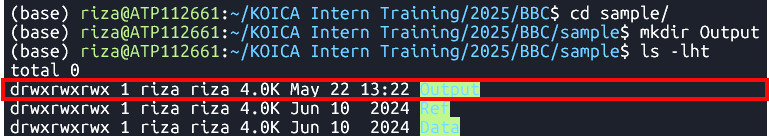

• mkdir Output

  Copy

• Changes the current directory to sample and creates a new directory named Output
  inside it.

Output
•

Reference Data Preparation (Indexing)

1. BWA Index

Syntax

bwa index [Reference.fasta]

Command

• bwa index Ref/Ref.fasta

  Copy

• Indexes the Ref.fasta file using the BWA tool

Output
• Files:
Ref.fasta.bwt
Ref.fasta.pac
Ref.fasta.ann
Ref.fasta.amb
Ref.fasta.sa

•

2. Samtools faidx

Syntax

samtools faidx [Reference.fasta]

Command

• samtools faidx Ref/Ref.fasta

  Copy

• Indexes the Ref.fasta file using samtools

Output
• File: Ref.fasta.fai
•

3. Picard CreateSequenceDictionary

Syntax

java -jar $PICARD CreateSequenceDictionary -REFERENCE [Reference.fasta] -OUTPUT [Reference.dict]

Command

• java -jar $PICARD CreateSequenceDictionary -REFERENCE Ref/Ref.fasta -OUTPUT Ref/Ref.dict

  Copy

• Creates a sequence dictionary for Ref.fasta

Output
• File: Ref.dict
•

Raw Read Preparation

1. Quality Check

Syntax

fastqc [in1.fq] [in2.fq] [...inN.fq]

Command

• fastqc Data/sample-1_1.fq.gz Data/sample-1_2.fq.gz

  Copy

• Runs FastQC analysis on files sample-1_1.fq.gz and sample-1_2.fq.gz

Output

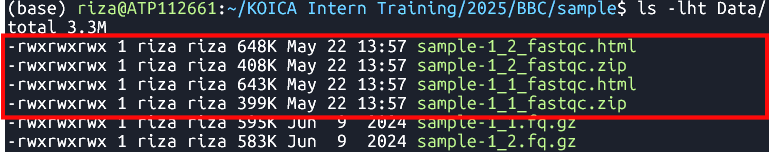

• File: FastQC reports
•

2. Cleaning

Syntax

fastp -i [in1.fq] -I [in2.fq] -o [out1.fq] -O [out2.fq]

Command

• fastp -i Data/sample-1_1.fq.gz -I Data/sample-1_2.fq.gz -o Data/sample-1_1-cleaned.fq.gz -O Data/sample-1_2-cleaned.fq.gz

  Copy

• Clean reads sample-1_1.fq.gz and sample-1_2.fq.gz

Output
• File: *-cleaned.fq.gz
•

Alignment to Reference Genome

Sorting

Tool:SortSam

Fix mate information

Tool:FixMateInformation

Add Read Group Information

Tool:AddOrReplaceReadGroups

Mark Duplicates

Tool:MarkDuplicates

Merging BAM Files (Optional)

Tool:samtools merge

Variant Calling

Tool:HaplotypeCaller

Merging GATK GVCFs

Tool:CombineGVCFS

Genotyping GVCFs

Tool:GenotypeGVCFs

Input and Output Files

Input Files

Output Files

Getting to know the tool

Installing BCFtools - please follow the Software Installation Guide

1. To get help directly within the terminal, you can run the command without arguments:

Usage: bcftools [--version|--version-only] [--help] [command] [argument]

• bcftools #
• bcftools -h
• bcftools view
2. Most used commands:
• bcftools # : with no arguments: general info and list of commands
• bcftools query: transform VCF/BCF into user-defined formats
• bcftools view: VCF/BCF conversion, view, subset and filter VCF/BCF files

* Adding information to VCF

• bcftools annotate: annotate and edit VCF/BCF files. E.g. add variant IDs
• bcftools csq: call variation consequences (like snpEff)

* Manipulating VCF files

• bcftools isec: convert VCF/BCF files to different formats and back
• bcftools reheader: modify VCF/BCF header, change sample names
• bcftools sort: sort VCF/BCF file
• bcftools index: needed for random access into VCF file

Initial getting to know the data

So, you got a fresh VCF file from the variant calling pipeline. It may be a gVCF file or a simple VCF file.

Question: What is the difference?

• The input data folder has both a gVCF and a VCF file. Let's see what is inside these files.

VCF Header

A lot of information about how the VCF was produced and what kind of information may be found in it, is located in the header. To see the header you may run:

Based on the information in the header, please do the following exercise.

Hands-on exercise

For both input VCF files, extract the headers and answer the questions:

1. Find which commands produced the original VCF file (GATKCommandLine).
2. Find which commands were applied to the original VCF file to create the current file.
3. Find names of chromosomes or contigs that are present in this (g)VCF.
4. Does this VCF contain InbreedingCoefficient metrics?
5. Does this VCF contain QD metrics? What is its type (number, string, etc)?

Overall Stats

To get an overall report containing many basic statistics, run bcftools stats

Exercise

Based on the stats file, find out how many of the following are in the file:

• SNPs
• indels
• multiallelic SNPS
• multi-nucleotide polymorphisms (MNPs)
• reference-only variants (not SNPs)
• Ts/Tv ratio
• Number of SNPs with allele frequency between 0 and 0.01

BCFtools query command

The main element in the structure of the command is the query string (or format string) that specifies what information you want to get. For each record in the VCF the query string will be evaluated and added as a row in the output

Extract variant QC metrics

To get various QC metrics, include the names of the metrics with the % sign prefix into the query string. There are some metrics, like read depth DP, that are applicable to both variant as a whole or to each sample. To distinguish between these, use prefixes INFO and FORMAT

• INFO/DP: depth across all samples, is placed into the INFO column
• FORMAT/DP: depth at each individual sample genotype call, is mentioned in the FORMAT column, the actual information is located in the genotype matrix

Example: some variant level QC metrics

For comparison, here is an example of read depths of each sample:

Extract variant genotype matrix as a table

Let us create a file by first putting row names, then dumping all the genotype calls:

Note in the first command we don't use % except in the %SAMPLE - thus, only sample names will be interpolated into the string.

Exploring alignment (BAM) files

We will use SAMtools software to retrieve basic information about the alignment data from BAM files. In order to make sense of some of the following, it would help to be familiar with SAM file structure, which you can read about in SAM format specifications. See also the SAM format wiki page for easier reading.

The following SAMtools commands will be used:

samtools index
samtools view
samtools tview
samtools stats
samtools flags

View header and alignments

To view header:

• In older versions of samtools

samtools view -h kanin-4.sorted.bam | less

Copy


• In the newest versions

samtools head kanin-4.sorted.bam

Copy

To view alignments in a more familiar environment of MS Excel, you may use samtools view and save the result as a TSV file, which you can then view in Excel by importing as a tab separated file

Note: changing tabs to commas in the whole file using the tr command might not be a very good idea, since the base quality string may contain commas.

Understanding Alignment Metadata

A lot of information about alignment of a read pair to reference is contained in the flags column. Each flags is a boolean true or false value encoded in a bit of the flags byte. See Bitwise flags

To easily retrieve the flags pertaining to a certain read alignment, e.g. the first read in the input BAM file is

FCD0R2NACXX:7:2105:6385:19577#CCACATTC_24       163     Chr7    272768  0       83M     =       273143  458     AGTTGTTTCCTCCCGCCGTGGCCCACGCTTTATCCGCACTGCGCGGAAGCGTGTTGTTGGTTCTTCCACCGTGTTCCGTTTCC  BFHHHHJJIJIJJJIJJJGHJJJIIIIIJJJIIIIJIJJJJGHEDD@BDDDB@BDDDDDDDDDDDDCCDDDDDDDDDDDDDCD  NM:i:1  MD:Z:5C77       MC:Z:83M        AS:i:78 XS:i:78

• Run the following:

  samtools flags 163

  Copy


• The result: 0xa3 163 PAIRED,PROPER_PAIR,MREVERSE,READ2

To understand meanings of these abbreviations, start with running samtools flags without arguments

About: Convert between textual and numeric flag representation
Usage: samtools flags FLAGS...

Each FLAGS argument is either an INT (in decimal/hexadecimal/octal) representing
a combination of the following numeric flag values, or a comma-separated string
NAME,...,NAME representing a combination of the following flag names:

   0x1     1  PAIRED         paired-end / multiple-segment sequencing technology
   0x2     2  PROPER_PAIR    each segment properly aligned according to aligner
   0x4     4  UNMAP          segment unmapped
   0x8     8  MUNMAP         next segment in the template unmapped
  0x10    16  REVERSE        SEQ is reverse complemented
  0x20    32  MREVERSE       SEQ of next segment in template is rev.complemented
  0x40    64  READ1          the first segment in the template
  0x80   128  READ2          the last segment in the template
 0x100   256  SECONDARY      secondary alignment
 0x200   512  QCFAIL         not passing quality controls or other filters
 0x400  1024  DUP            PCR or optical duplicate
 0x800  2048  SUPPLEMENTARY  supplementary alignment

FCD0R2NACXX:7:2105:6385:19577#CCACATTC_24       83      Chr7    273143  0       83M     =       272768  -458    TCGGCGTAGCTCTGTGACTTGTCCACACCCATTGTATCAGGTGTTTTTATGATTTGAAAAATCCAGTTTATGCCTAGTGTGTG  BDDDBDEEEEEFFFDFFFHHHHJIHHHJJIJGIJJJJJJJJJJJJJJJJJJJJJJJJJJJIIJJJJJJIJJJJJJJJHHHHHF  NM:i:1  MD:Z:30G52

• Run the following:

  samtools flags 83

  Copy


• The result: 0x53 83 PAIRED,PROPER_PAIR,REVERSE,READ1

Interactive text Viewer

First, make sure the file is indexed

For a more feature-full experience, use a GUI alignment viewer such as IGV.

Module Summary

Understanding the genetic basis of diversity through the discovery of Single Nucleotide Polymorphisms (SNPs) via variant calling is a fundamental step in gene discovery. By identifying and analyzing SNPs, researchers can uncover genetic variations that contribute to differences in traits. This knowledge is critical for pinpointing specific genes associated with those traits, facilitating advancements in fields such as genetics, breeding, and biotechnology. In this module, you have gained an understanding of the Variant Calling workflow. You have explored the essential tools and software used for variant discovery, including FASTQC, BWA, Picard, SamTools, and GATK. You have also had the opportunity to perform variant calling, and you have learned how to analyze and interpret the resulting data files, such as VCF and BAM files.

• Single Nucleotide Polymorphisms (SNPs) and Insertions/Deletions (InDels) are crucial for analyzing rice diversity, establishing population structure, and identifying genes associated with important traits.
• The variant calling workflow is essential for identifying variants in a diverse rice population. It is important to become proficient with software tools such as BWA, SamTools, GATK, and BCFTools for effective variant calling.
• Exploring BAM and VCF output files is crucial for understanding and interpreting variant data.

References

Slatko BE, Gardner AF, Ausubel FM. Overview of Next-Generation Sequencing Technologies. Curr Protoc Mol Biol. 2018 Apr;122(1):e59. doi: 10.1002/cpmb.59. PMID: 29851291; PMCID: PMC6020069. https://doi.org/10.1002/cpmb.59
